Testing and Validation
Skyships Technical Centre
Located in Chelmsford, Essex, Skyships boasts over 25 years of experience in EMC testing and product compliance.
In our new, UKAS ISO17025 accredited, state-of-the-art facility, we can perform a range of EMC tests.
Our highly experienced engineers provide guidance on all aspects of testing, including bespoke test plans, test methods, and explanation of results.
In our new, UKAS ISO17025 accredited, state-of-the-art facility, we can perform a range of EMC tests.
Our highly experienced engineers provide guidance on all aspects of testing, including bespoke test plans, test methods, and explanation of results.
Accredited to: ISO/IEC 17025:2017
Skyships Technical Centre
Our new test centre, designed by our dedicated team of test engineers, incorporates industry-leading enhancements to improve test proficiency, data handling, and best practice quality processes.
The facility is available for both development and validation activities and includes three semi-anechoic chambers, a BCI test chamber, a humidity-controlled ESD test room and Conducted Immunity test stations.
Contact us today for a site visit and free consultation to discuss the services we can provide to support your current and future needs.

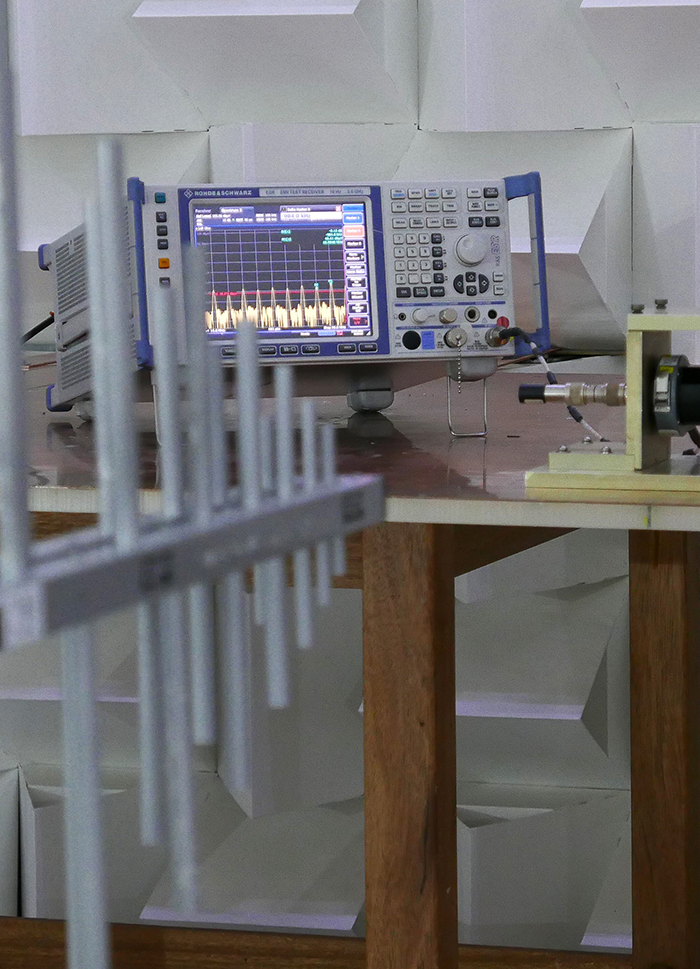

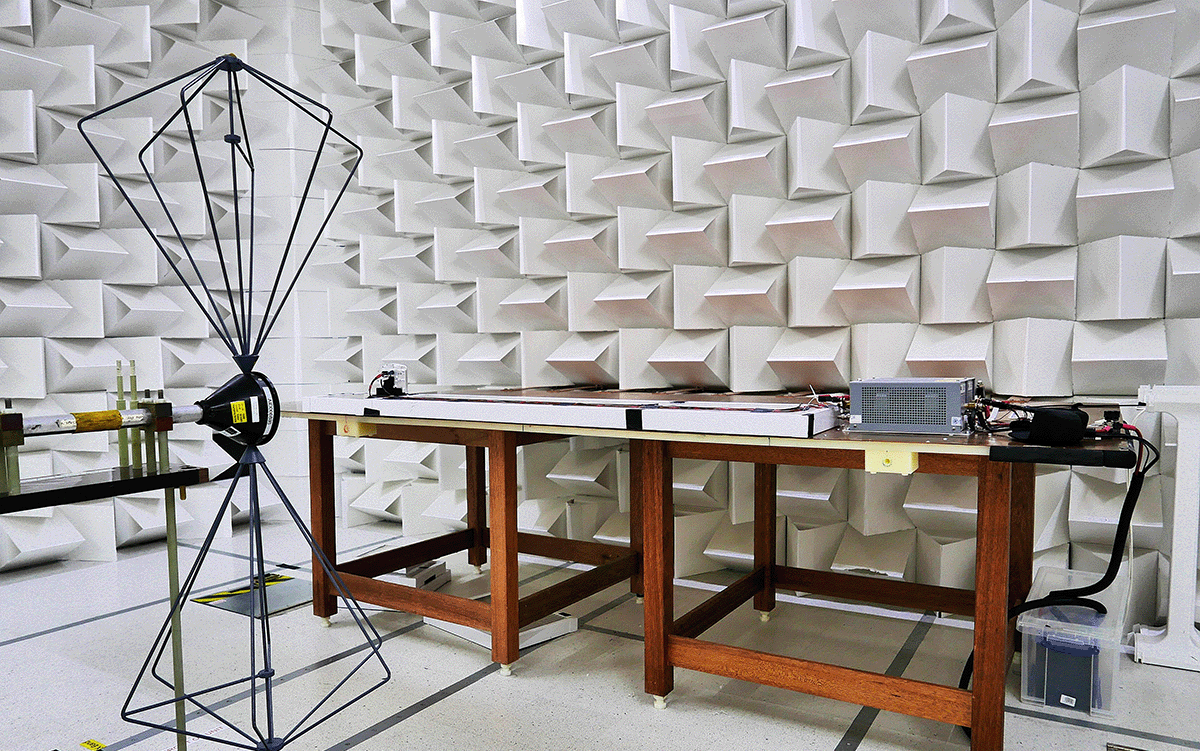

Radiated Emissions
Two chambers for testing radiated emissions to CISPR25
Testing from 150 kHz to 6 GHz
Audio monitoring capabilities
Conducted Emissions
Two chambers for testing conducted emissions to CISPR25
Testing from 150 kHz to 245 MHz
Audio monitoring capabilities
Radiated Immunity
Dedicated chamber for testing freefield radiated immunity to ISO11452-2
Testing from 80 MHz to 12.5 GHz up to 600 V/m
Video and Audio monitoring capabilities

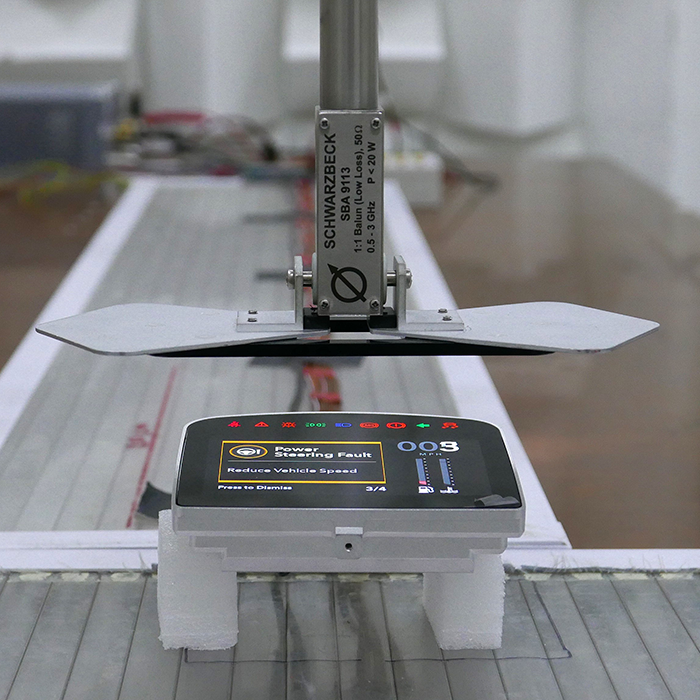

Portable Mobile Transmitter
Dedicated chamber for testing immunity to disturbances in the near field to ISO11452-9
Testing from 28 MHz to 3 GHz up to 15 W
Semi Automated positioning control
Video and Audio monitoring capabilities
Bulk Current Injection
Dedicated screened chamber to ISO11452-4
Injected currents to 300 mA over the 0.1- 400 MHz frequency range
Substitution and closed loop test methods
Video and Audio monitoring capabilities

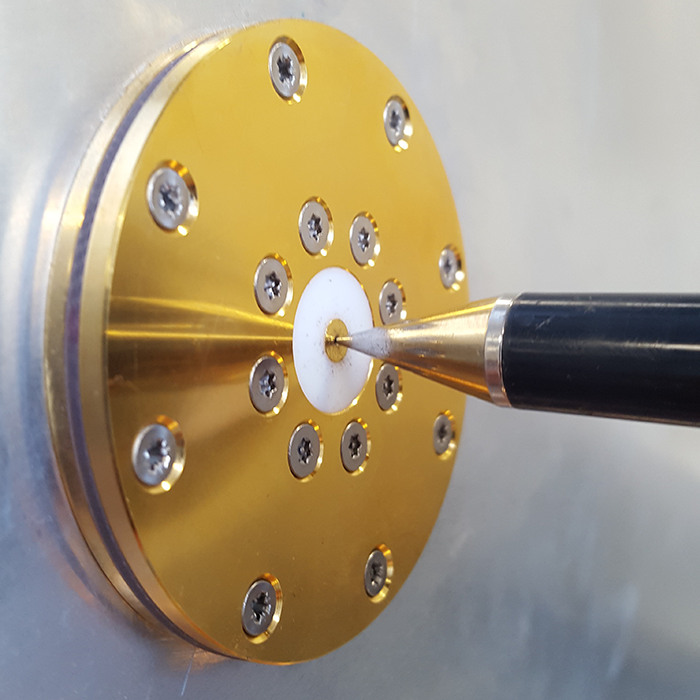

Electrostatic Discharge
Dedicated climate controlled test room to ISO10605
Capable of up to 25 kV air & contact discharge
Conducted Immunity
Two dedicated test stands for transient testing to ISO7637 and ISO16750
12v and 24v capable
Video and Audio monitoring capabilities
